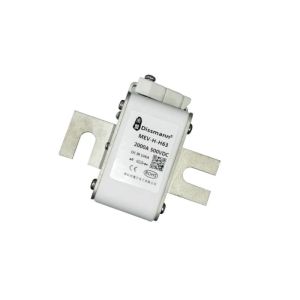

2000 amp High Voltage Automotive Fuse ISO8820 for Semiconductor

Name: 2000 amp High Voltage Automotive Fuse ISO8820 for Semiconductor
Brand: Dissmann
Price: 1 USD

China 2000 amp High Voltage Automotive Fuse ISO8820 for Semiconductor wholesale

Brand Name : Dissmann

Model Number : MEV-H-H63

Certification : CCC

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 1,000,000pcs

Delivery Time : 5-8days

Packaging Details : Standard Carton Packing

Material : Ceramic

Colour : White

Rated Voltage : 500VDC

Rated Current: : 2000A

Breaking Capacity : DC10KA

Standard : UL248-13、ISO8820、 JASO-D622、IEC60269

Usage : energy storage battery,PV,high voltage automotive

Keyword： : energy storage battery fuse

Contact Now

MEV Cartirdge Fuse European Square Fuse PV Fuse Semiconductor Fuse

Material:
Noumenon: fiber pipe
Pins: Alloy

Product Presentation:

Rated Voltage

额定电压

DC500V,AC690V

或低于

Type Protection

保护类别

Rated Current 额定电流

800A-1800A

Breaking Capacity

分断能力

DC10KA

(时间常数≤10ms)

Meet the Requirement

符合要求

UL248-13,ISO8820,JASO-D622,IEC60269

欧盟和RoHS 指令

Remarks

备注

产品外形尺寸(mm)/Overall dimensions of the product(mm)

产品型号/Product type

Model 型号	Product code 产品代码	Rated current 额定电流 A	I²t(A²Sec)		Power consumption 功率损耗 W
Model 型号	Product code 产品代码	Rated current 额定电流 A	弧前	总	Power consumption 功率损耗 W
MEV-H-H63	MEV-H-H63-800	800A	69200	465000	115
	MEV-H-H63-900	900A	100000	670000	120
	MEV-H-H63-1000	1000A	140000	945000	125
	MEV-H-H63-1100	1100A	190000	1300000	130
	MEV-H-H63-1250	1250A	280000	1900000	140
	MEV-H-H63-1400	1400A	370000	2450000	155
	MEV-H-H63-1500	1500A	460000	3100000	160
	MEV-H-H63-1600	1600A	580000	3900000	160
	MEV-H-H63-1800	1800A	880000	5200000	165

Test equipment

2000 amp High Voltage Automotive Fuse ISO8820 for Semiconductor

Production equipment

Hot Tags: safety fuse 500VDC, China, manufacturers, suppliers, factory, Built-in Fuse For Multimeter Voltage Meter, 5G Telecommunications Solutions Fuse, Fuse for BDU, Fuses for Automotive Aftermarket, Bolt Down Fuse, 5G Communication Fuse,Energy Storage Battery Fuse

Product Tags:

2000 amp fuse

ISO8820 high voltage automotive fuse

Semiconductor high voltage automotive fuse

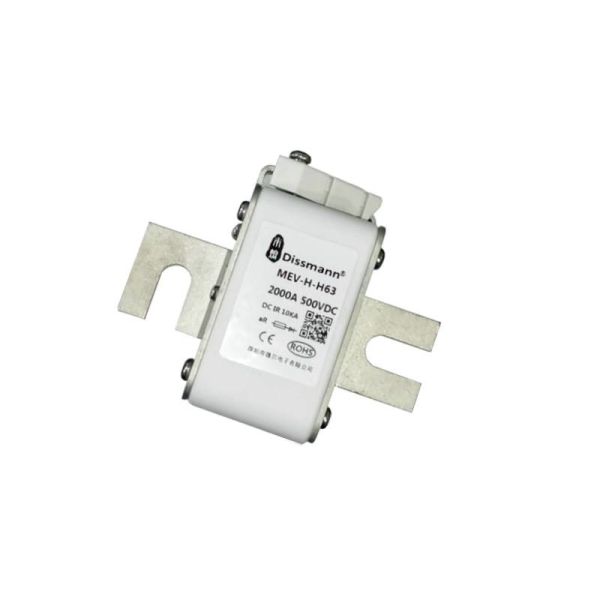

2000 amp High Voltage Automotive Fuse ISO8820 for Semiconductor Images
